Sway Pole - Selection Guide
Buying your first sway pole kit can feel overwhelming with so many options and parameters to consider. Use our selection guide to find the perfect setup for your needs. Below, you’ll find our most popular configurations.
If you are not sure what you need, or if what you need is not in there, let us save you time and assist you by booking a call with one of our specialists here.
Choosing the right kit mostly comes down to selecting the appropriate base. Our sway poles are standardized (currently featuring one primary model in different lengths based on performer weight, with shorter poles for indoor venues coming soon).
What matters most is the base supporting your pole—or the adaptation going over it!

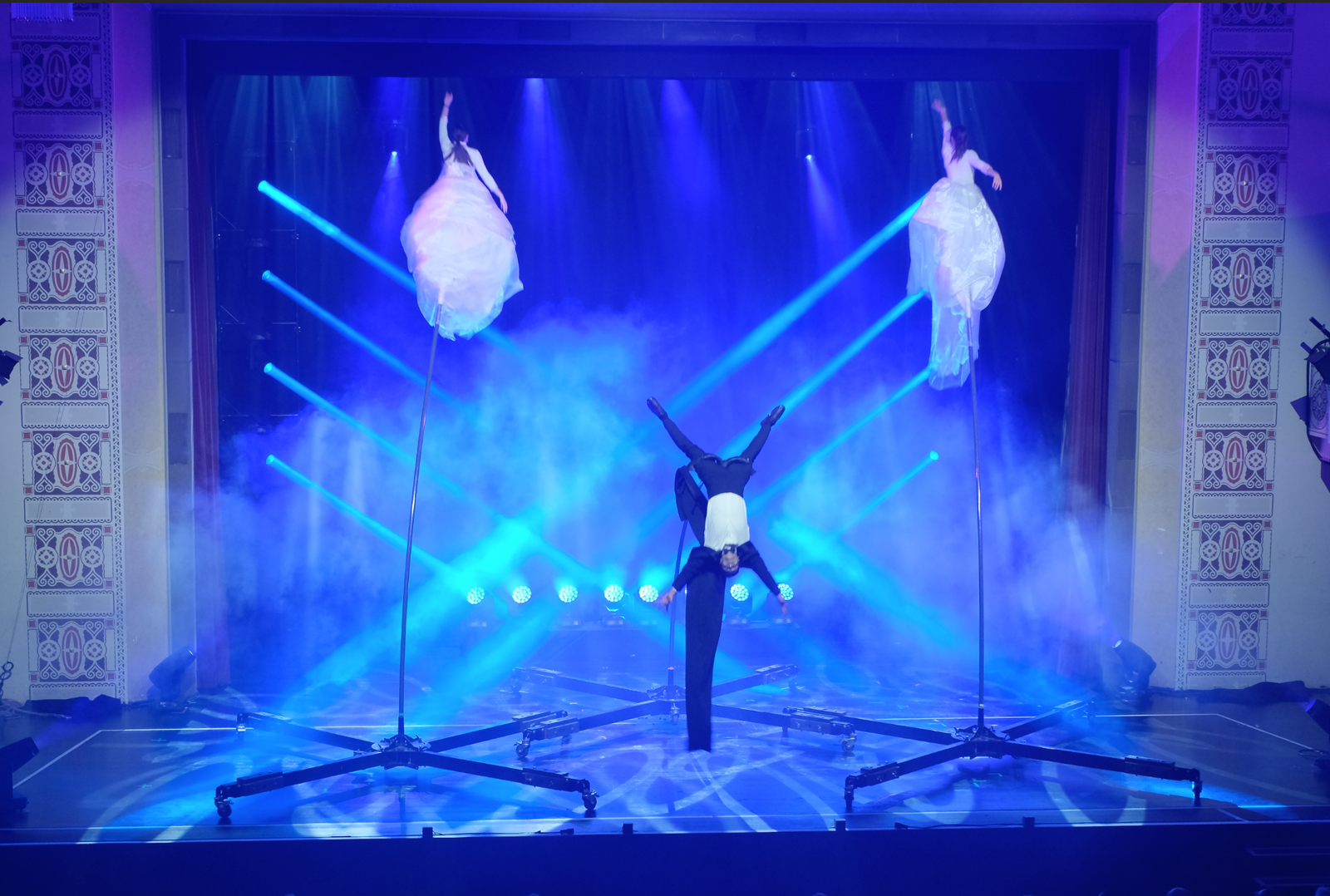

Standard Sway Pole Kit
Overview

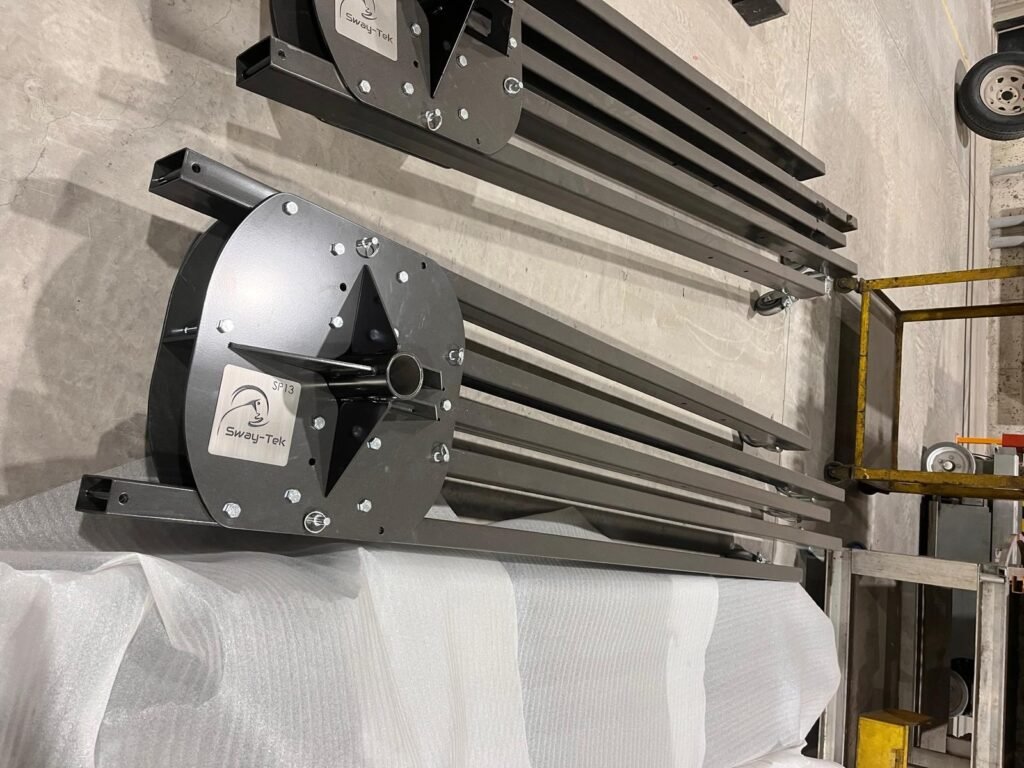

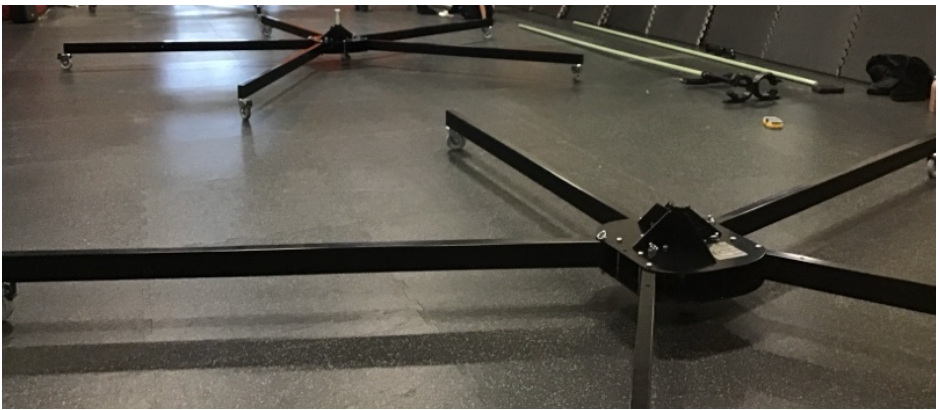

Steel base with 5 foldable legs – Standard harness on top.
This kit is the fastest one to get ready on any event. Roll it in place, open the legs in less than 30 seconds, and put the pole in and your good to go ( if no levelling is required )
Perfect for indoor and outdoor shows on levelled grounds, fast setup and teardown and budget friendly.
Height
(Metric ) 4.6 to 4.9 Poles - Requires 6m minimum height clearance
(Imperial) 15 to 16 foot Poles - Requires 20' minimum ceiling/clearance
Weight Capacity
Solo performer
• 4.6m (15 ft) Pole: 65 to 82 kg / 135 - 180 lbs
• 4.9m (16 ft) Pole: 45 to 64 kg / 100 - 134 lbs
Outside that range? Contact us!
Primary Features
Mounted on permanent wheels, easy to move around (folds in seconds to store backstage or out of view)
Base folds again on itself for storage and transport.
No tools required for setup.
For outdoors events, you can level it by putting blocks under the legs.
Best Environment
Indoor & Stages: Live shows, indoor events, Festivals, shopping malls, corporate events.
Transport Size and Weight
Metric
1 Base - 155 x 60 x 60 cm - 116 kg
1 Components Box - 70 x 50 x 26 cm - 14.5 kg
1 Pole in transport tube - 7 cm diameter x 5m long
Imperial
1 Base - 60" x 24" x 30" - 250lbs
1 Components Box - 28" x 19" x 10" - 32 Lbs
1 Tube 2.5" Dia x 17' Lg - 40 lbs
Choose your sway pole size
Select the pole size that fits your performer’s weight.
You can always use a pole with an artist lighter than its recommended weight range, but you should NOT use it over the recommended weight.
We recommend buying 2 poles (and we discount the 2nd pole!) to always have a spare, that you can also use once the lifetime of the pole has ended.

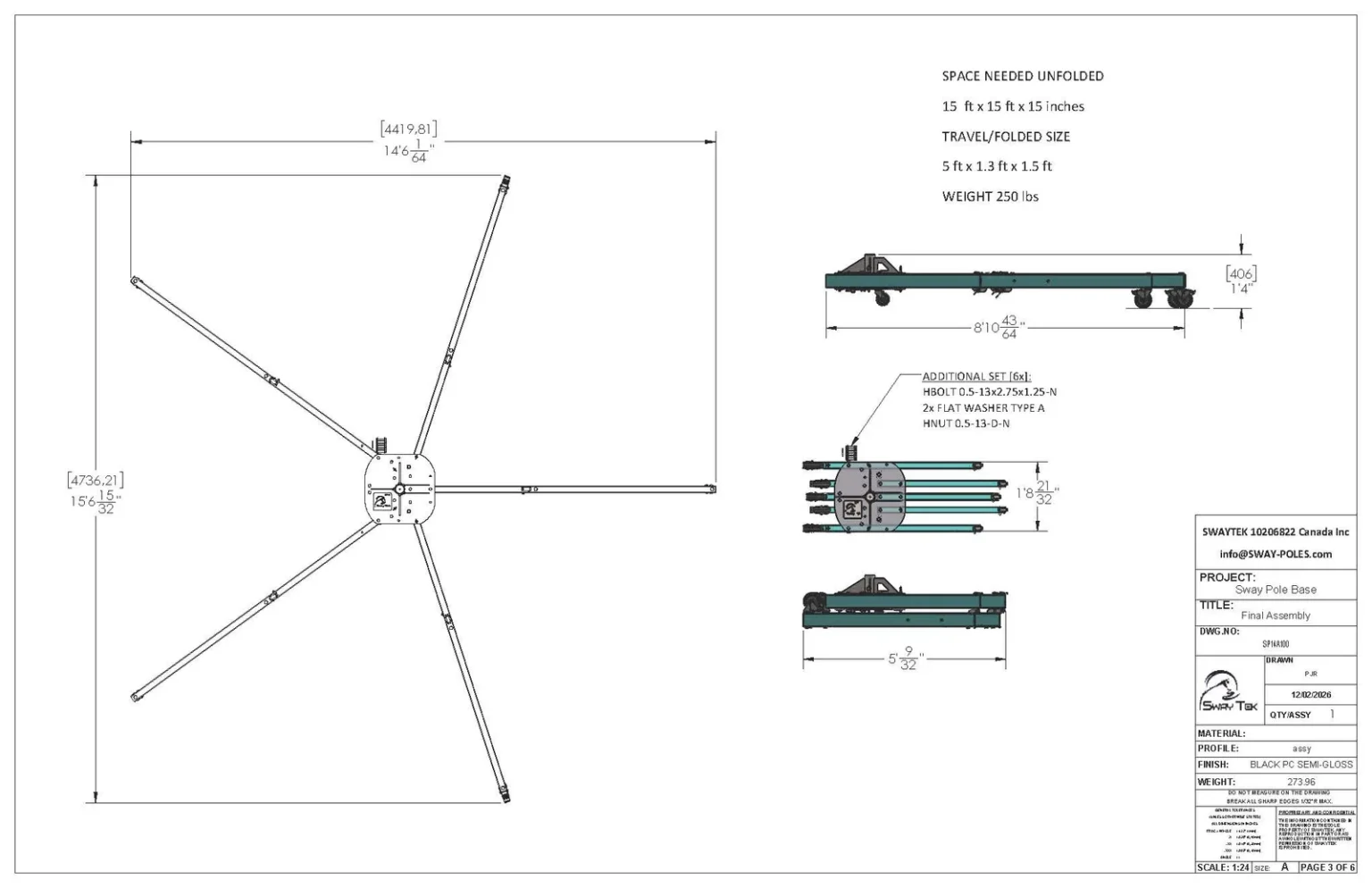

Base Technical Specifications

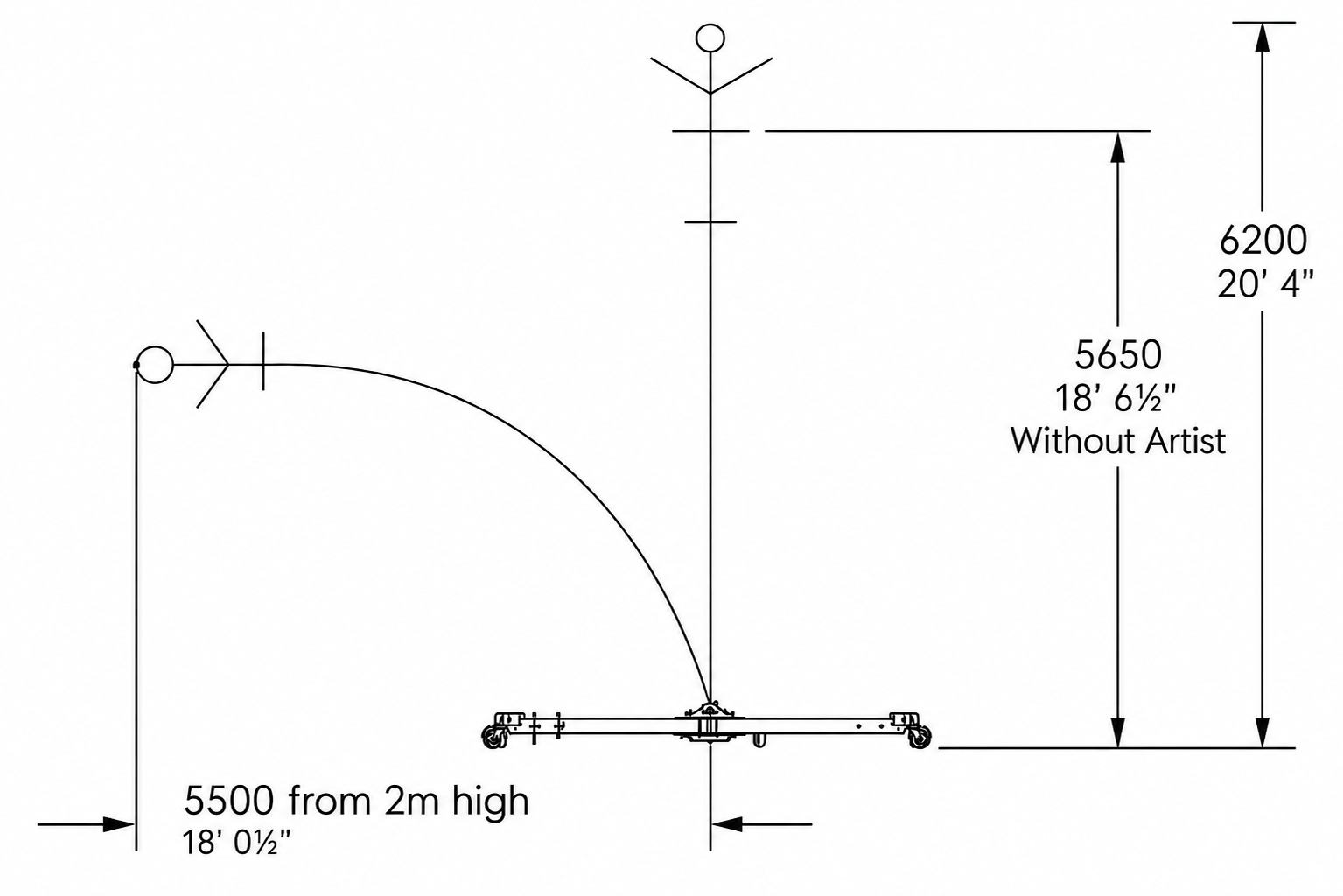

Height specifications
Outdoor Kit
Overview

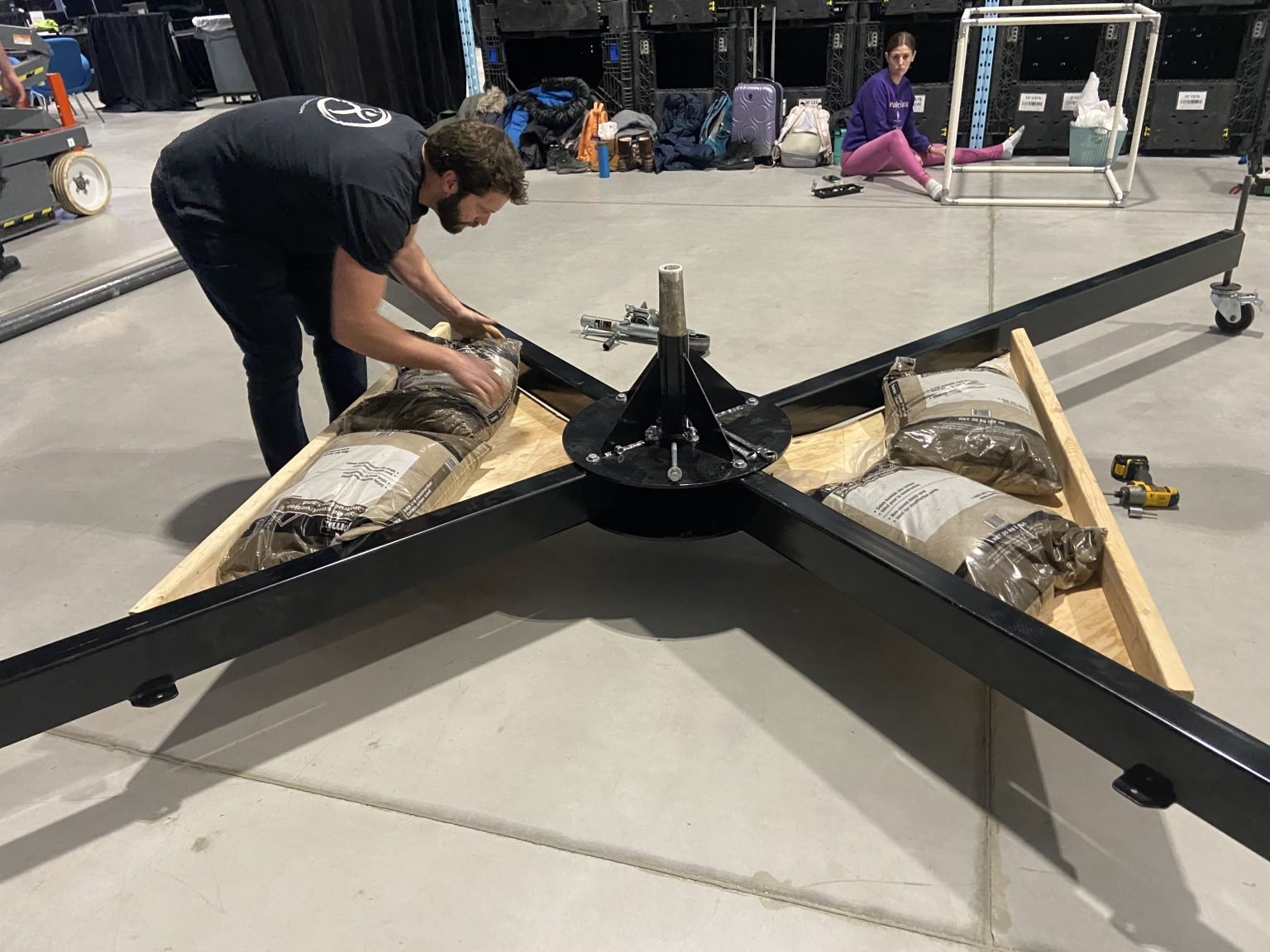

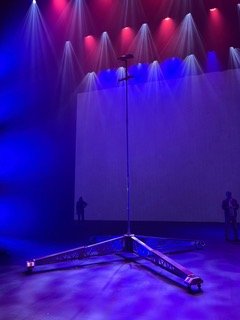

Engineered for outdoor stability, the Outdoor Kit features a 4-leg base with easily adjustable legs for precise leveling on uneven terrain. Built to handle open-air environments and larger venues with complete confidence.
(Full details coming soon)
Height
(Imperial) 15 to 16 foot Poles - Requires 20' minimum ceiling/clearance
(Metric) 4.6 to 4.9m Poles - Requires 6m minimum height clearance
Weight Capacity
Solo performer 4.6m (15 ft) Pole - 65 to 82 kg / 135 - 180 lbs
4.9m (16 ft) Pole - 45 to 64 kg / 100 - 134 lbs
Outside that range? Contact us!
Primary Features
Mobility: 4-leg adjustable base for easy leveling on uneven outdoor terrain.
Build: Designed for stability and outdoor environments.
Best Environment
Outdoor & Festivals: Outdoor stages, open-air festivals, parks, uneven terrain, and outdoor live events.
Transport Size and Weight
Metric
1 Base - 155 x 60 x 60 cm - 116 kg
1 Components Box - 70 x 50 x 26cm - 14.5 kg
1 Pole in transport tube - 7cm Diameter x ~5m long
Imperial
1 Base - 60" x 24" x 30" - 250lbs
1 Components Box - 28 x 19 x 10po - 32 Lbs
1 Tube 2.5" Dia x 17' Lg - 40 lbs
Choose your poles size
Select the poles size that fits your performers weight.
You can alsways use a pole with an artists lighter than it’s recommended weight range, but you should NOT use it over the recommended weight.
We recommend you to buy 2 poles( and we discount the 2nd pole! ) to always have a spare, that you can also use once the lifetime(link) of the pole is passed.
Cant find the right kit? Click Here(link to book an appointment )
Base Technical Specifications
Height specifications
Travel Kit
Overview

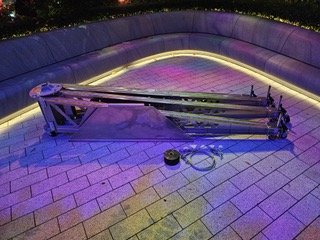

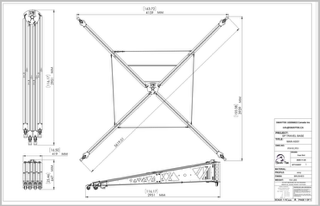

Built for artists on the move, the Travel Kit features an ultra-lightweight, 4-leg aluminum base designed to fit seamlessly into airline checked baggage. It includes end wheels and leveling screws for smooth transport and adaptivity on uneven ground, needing only two local sandbags or weights as counterweight. Every kit comes complete with a top harness, footbar with strap, and custom pole lengths matched to the performer’s weight.
Height
(Metric ) 15 to 16 foot Poles - Requires 20' minimum ceiling/clearance
(Imperial) 4.6 to 4.9m Poles - Requires 6m minimum height clearance
Weight Capacity
Solo performer
4.6m(15 ft) Pole - 65 to 82kg / 135 - 180lbs
4.9m(16 ft) Pole - 45 to 64 kg / 100 - 134 lbs
Outisde that range? Contact us!
Primary Features
Mobility: Lightweight 4-leg aluminum base; airline checked-baggage ready.
Base: Wheeled with leveling screws; requires local counterweights.
Convenience: Designed for international touring and fast setup.
Best Environment
Indoor & Stages : Live shows, indoor events, Festivals, shopping malls, corporate events..
Transport Size and Weight
Metric

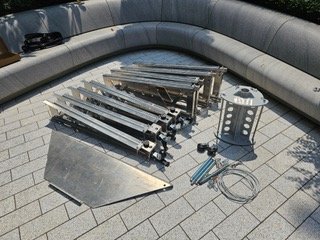

1 Leg End - 130 x 46(28) x 28 cm - 18 kg
1 Leg Base - 147 x 28(18) x 28 cm - 43 kg
1 Accessories Box - 25 x 25 x 61 cm - 6.8 kg
TOTAL Weight - 67.8 kg
Or in 1 Crate - 152 x 61 x 61 cm - 81.6 kg
Imperial
1 Leg End - 51" x 18"(11") x 11" - 40 lbs
1 Leg Base - 58" x 11"(7") x 11" - 95 lbs
1 Accessories Box - 10" x 10" x 24" - 15 lbs
TOTAL Weight - 150
Or in 1 Crate - 60" x 24" x 24" - 180 lbs
Choose your poles size
Select the poles size that fits your performers weight.
You can alsways use a pole with an artists lighter than it’s recommended weight range, but you should NOT use it over the recommended weight.
We recommend you to buy 2 poles( and we discount the 2nd pole! ) to always have a spare, that you can also use once the lifetime(link) of the pole is passed.
Cant find the right kit? Click Here(link to book an appointment )
Base Technical Specifications
Height specifications
Conversion Kit
Overview
These kits were designed following multiple requests to convert from an Xperience Magic Sway Pole setup to a SwayTek pole setup, following multiple reported accidents with their poles.
Height
(Metric ) 15 to 16 foot Poles - Requires 20' minimum ceiling/clearance
(Imperial) 4.6 to 4.9m Poles - Requires 6m minimum height clearance
Weight Capacity
Solo performer
4.6m(15 ft) Pole - 65 to 82kg / 135 - 180lbs
4.9m(16 ft) Pole - 45 to 64 kg / 100 - 134 lbs
Outisde that range? Contact us!
Primary Features
Base on permanent wheels, easy to move around( folds in seconds to store backstage or out of view )
Base folds again on itself for storage and transport.
No tools required to setup.
For outdoors, you can level it by putting bloacks under the legs.
Best Environment
Indoor & Stages : Live shows, indoor events, Festivals, shopping malls, corporate events..
Transport Size and Weight
Metric
1 Base - 155 x 60 x 60 cm - 116 kg
1 Components Box - 70 x 50 x 26cm - 14.5 kg
1 Pole in transport tube - 7cm Diameter x ~5m long
Imperial
1 Base - 60" x 24" x 30" - 250lbs
1 Components Box - 28 x 19 x 10po - 32 Lbs
1 Tube 2.5" Dia x 17' Lg - 40 lbs
Choose your poles size
Select the poles size that fits your performers weight.
You can alsways use a pole with an artists lighter than it’s recommended weight range, but you should NOT use it over the recommended weight.
We recommend you to buy 2 poles( and we discount the 2nd pole! ) to always have a spare, that you can also use once the lifetime(link) of the pole is passed.
Cant find the right kit? Click Here(link to book an appointment )
Base Technical Specifications
Height specifications

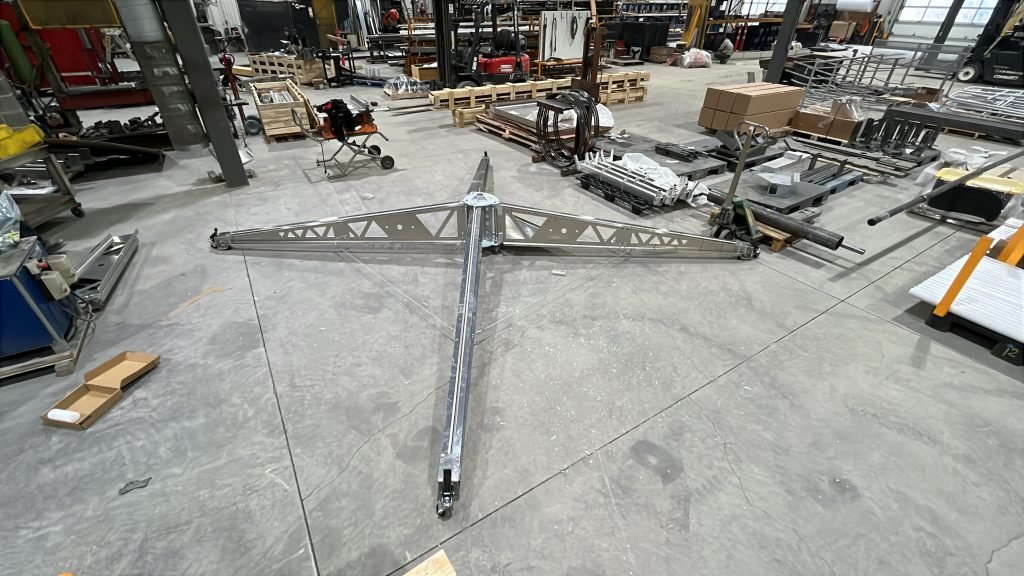

Permanent Shows
Overview
Steel base with 5 foldable legs – Standard harness on top.
This kit is the fastest one to get ready on any event. Roll it in place, open the legs in less than 30 seconds, and put the pole in and your good to go( if no levelling is required )
Perfect for indoor and outdoor shows on levelled grounds, fast setup and teardown and budget friendly.
Height
(Metric ) 15 to 16 foot Poles - Requires 20' minimum ceiling/clearance
(Imperial) 4.6 to 4.9m Poles - Requires 6m minimum height clearance
Weight Capacity
Solo performer
4.6m(15 ft) Pole - 65 to 82kg / 135 - 180lbs
4.9m(16 ft) Pole - 45 to 64 kg / 100 - 134 lbs
Outisde that range? Contact us!
Primary Features
Base on permanent wheels, easy to move around( folds in seconds to store backstage or out of view )
Base folds again on itself for storage and transport.
No tools required to setup.
For outdoors, you can level it by putting bloacks under the legs.
Best Environment
Indoor & Stages : Live shows, indoor events, Festivals, shopping malls, corporate events..
Transport Size and Weight
Metric
1 Base - 155 x 60 x 60 cm - 116 kg
1 Components Box - 70 x 50 x 26cm - 14.5 kg
1 Pole in transport tube - 7cm Diameter x ~5m long
Imperial
1 Base - 60" x 24" x 30" - 250lbs
1 Components Box - 28 x 19 x 10po - 32 Lbs
1 Tube 2.5" Dia x 17' Lg - 40 lbs
Choose your poles size
Select the poles size that fits your performers weight.
You can alsways use a pole with an artists lighter than it’s recommended weight range, but you should NOT use it over the recommended weight.
We recommend you to buy 2 poles( and we discount the 2nd pole! ) to always have a spare, that you can also use once the lifetime(link) of the pole is passed.
Cant find the right kit? Click Here(link to book an appointment )
Base Technical Specifications
Height specifications
Why our Sway Pole
Selection Guide matters
Choosing the right sway pole is more than just picking a height—it’s about ensuring you get the exact tool for your performance needs. A SwayTek sway pole kit is a significant investment, and we want you to get the absolute most out of it. We have designed a variety of sway pole bases and accessories to ensure maximum flexibility, safety, and ease of use.
How This Guide Helps You
- Understanding Sway Pole Anatomy: We help you understand each component of your SwayTek sway pole kit.
- Safety First: Performance safety is non-negotiable. Our guide provides clear operational safety guidelines and floor clearance requirements to help you plan your venue layout and keep your performers secure.
- Venue Compatibility: Whether you are performing in a low-ceiling dance studio or a high-wind outdoor coastal environment, our guide categorizes each sway pole by its Best Environment, ensuring your equipment is built for the elements it will face.
- Tailored Performance: Different artists require different “flex.” Use the guide to compare the Max Capacity to find the sway pole that offers the exact resistance and rebound your choreography demands.
What can change?
Each basic sway pole kit is identical.
What can change is:
- The length of the sway pole – according to the performer’s weight.
- The sway pole base – according to your needs.
- What goes on top – whether you need a standard harness or a custom prop (even a unicorn!), we can build it.
Quick Tips for Using the Table
- Check Your Clearance: Ensure your venue radius matches the “Floor Clearance” requirement to avoid any contact with walls, rigging, or equipment during full oscillation.
- Monitor Your Weight: Remember that “Dynamic Weight” includes the force of movement during a sway pole performance, not just the static weight of the performer.
- Calibrate to Height: As you increase the height of your sway pole, pay close attention to the reduction in weight capacity and the change in the safe sway angle.

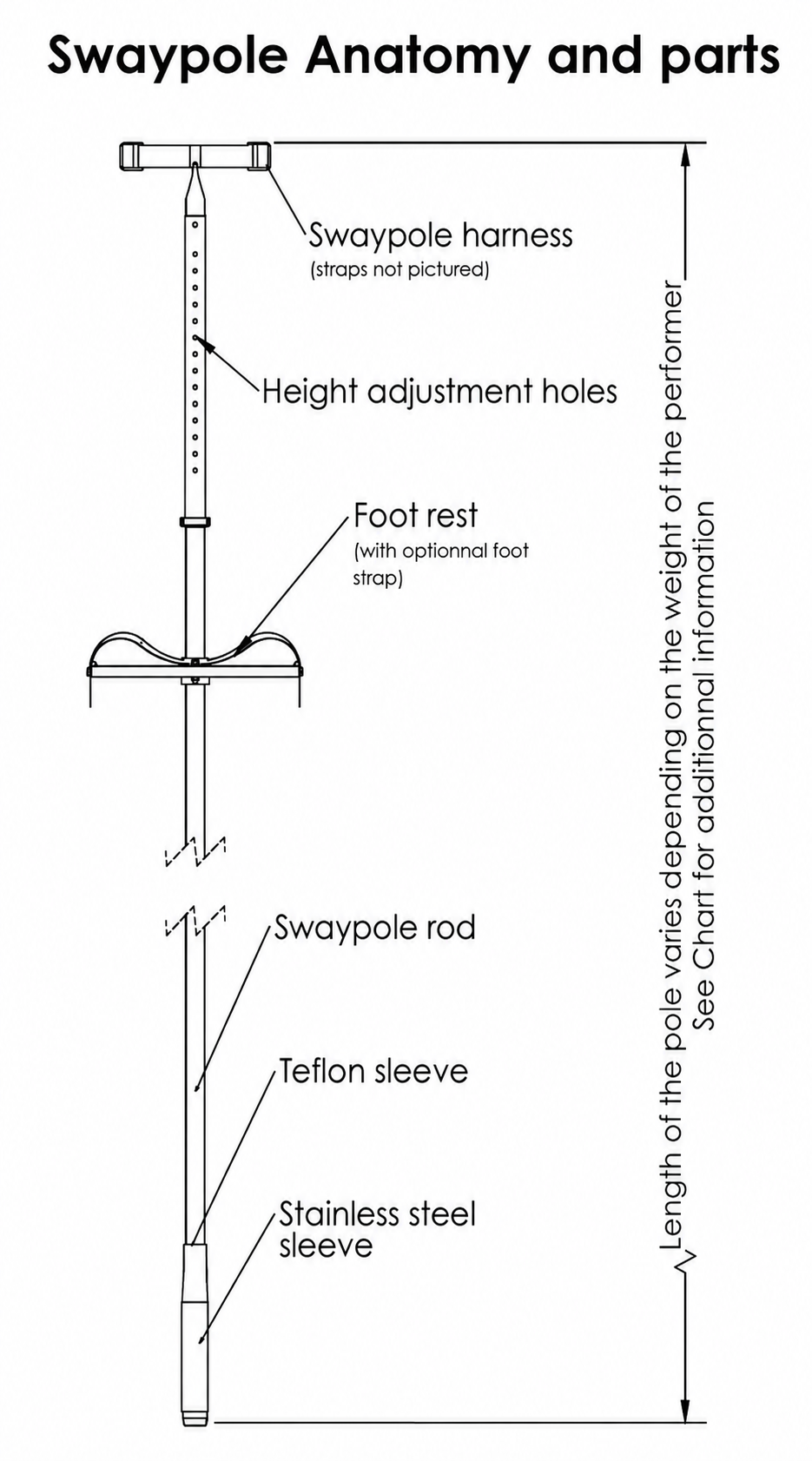

What is ... what? From top to bottom
- SwayTek Harness
- This is pure comfort – a harness that holds you tight, padded for comfort, and equipped with 2 Cobra Clips to clip you in safely.
- Height adjustment holes allow you to compensate for weight differences between artists. Use them to adjust when a heavier or lighter artist uses the pole at maximum or minimum height, or for small adjustments when performing a synchronized choreography with multiple artists and poles.
- Foot Rest
- The foot rest is taped to prevent sliding and features adjustable straps to keep your feet secure when transferring weight.
- It’s adjustable in height according to your leg length.
- The SwayTek Sway Pole
- The most important part – the pole! Incredibly strong, it cannot snap and will keep you safe while flexing so much your relatives can’t watch.
- Teflon Sleeve
- Instead of a bearing which you can’t control, we use the most slippery material available to let the sway pole spin when it’s not bent too much, while locking rotation when bent, allowing weight transfers for better pole control.
- Stainless Sleeve
- This is the adapter into the base – it moves and bends slightly to relieve the pole of some of its stress, while holding the Teflon sleeve that lets you spin.
- Base (not shown)
- Choose your base and sway!
